Solutions · MRI PadsBrachial Plexus

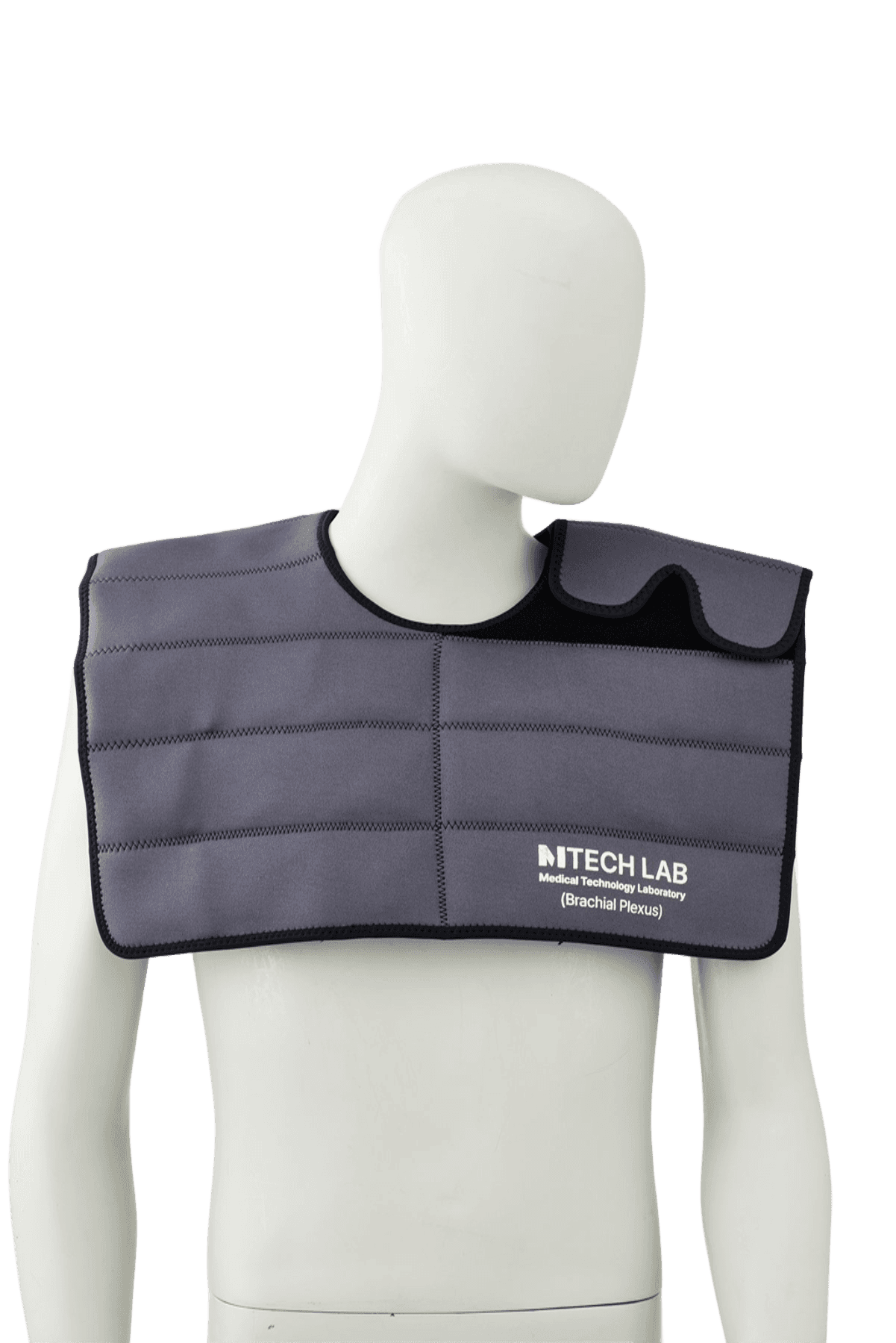

Brachial Plexus MRI Dielectric Pad

High-dielectric MRI pad shaped for brachial plexus imaging, built to support B1 field uniformity without changing the scan protocol.

Size
50 × 40 cm
Material
High dielectric constant material
Evidence
Media only
Request a Trial Contact Us

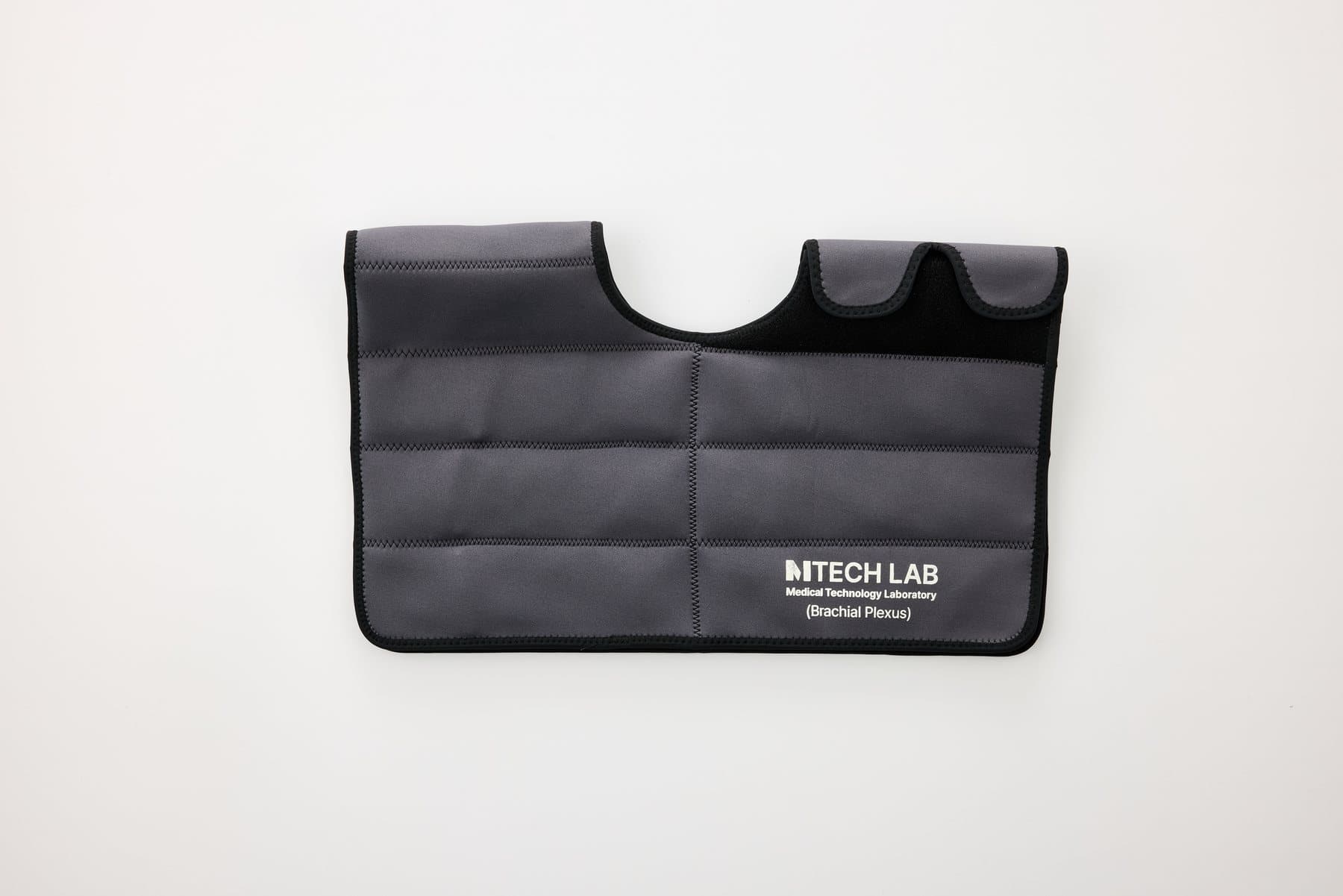

Brachial Plexus MRI Dielectric Pad
MR workflow compatible
50 × 40 cm
1.5T / 3T
02 / Fit and workflow

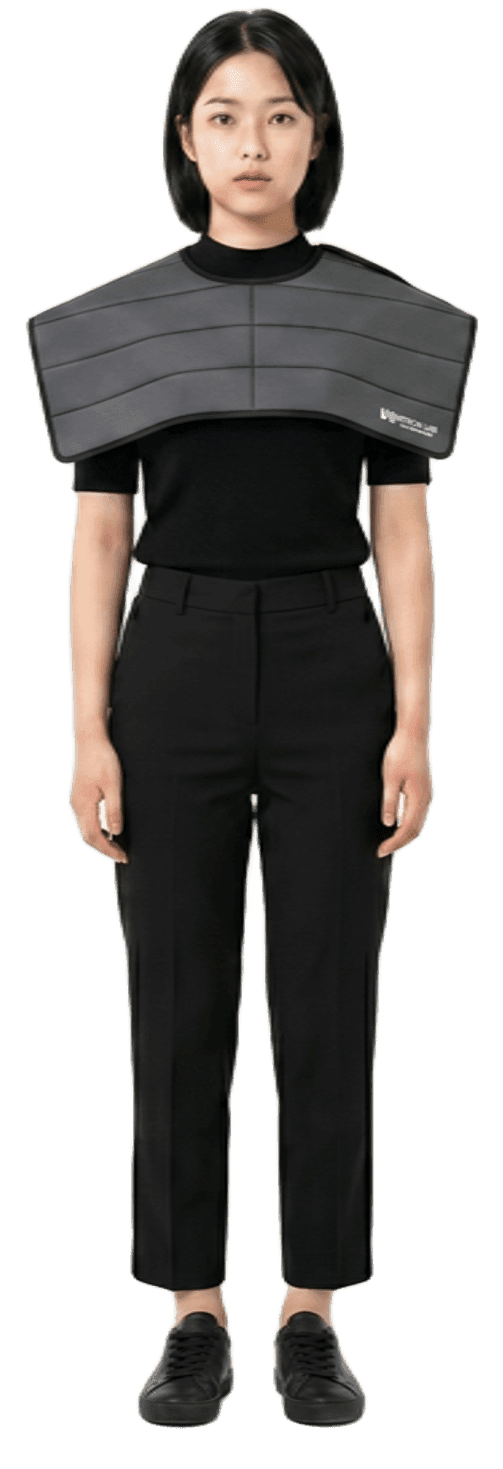

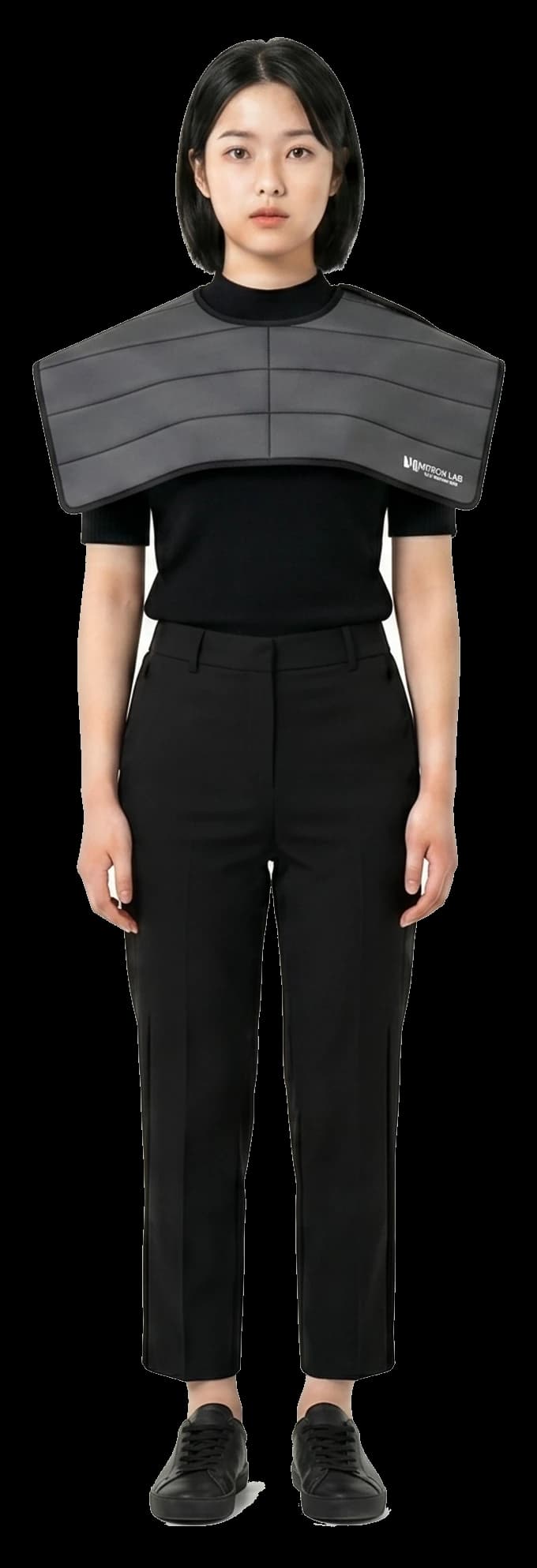

Brachial Plexus MRI Dielectric Pad placement on body

Placement

Anatomically shaped for the scan region, then used with the existing coil workflow.

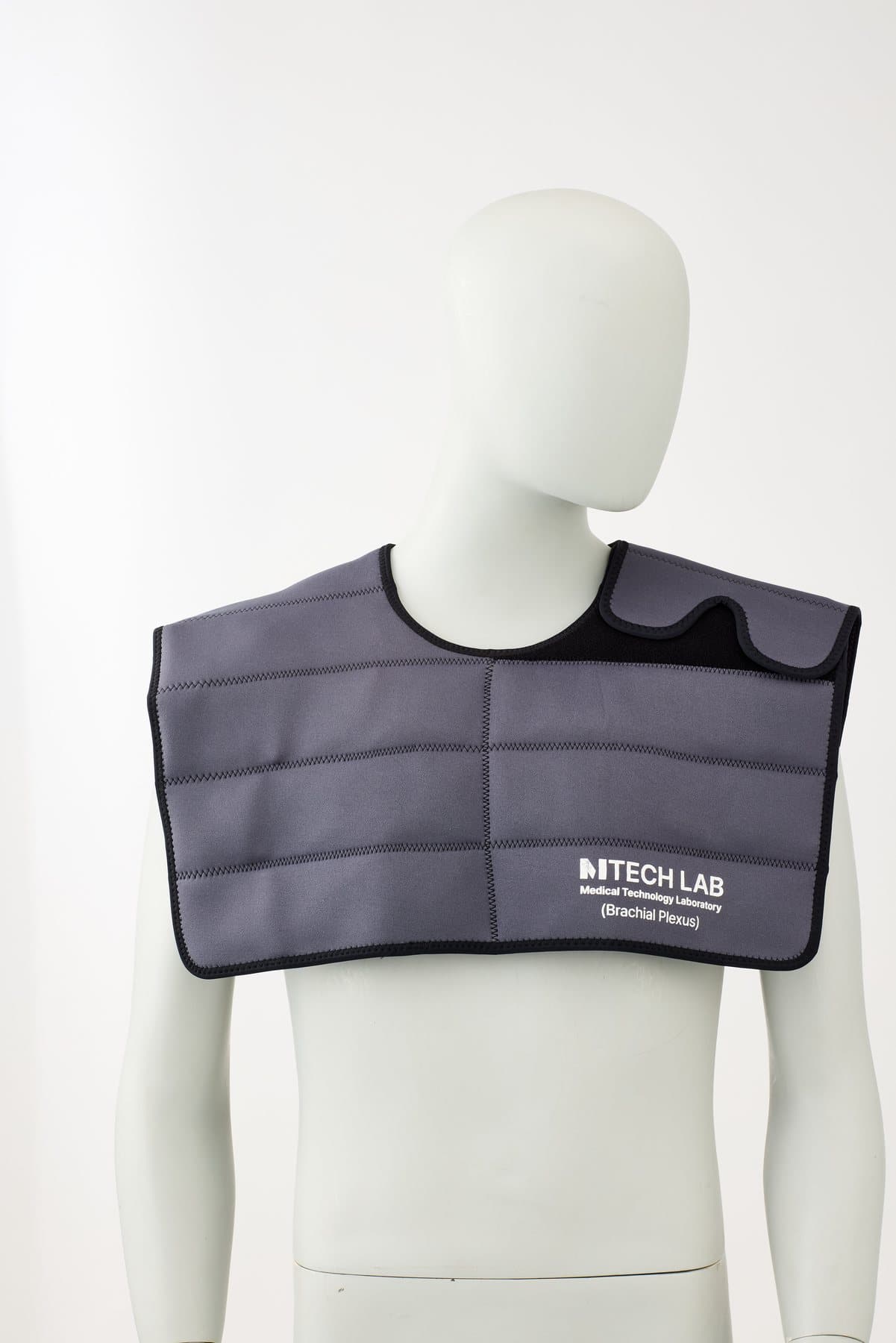

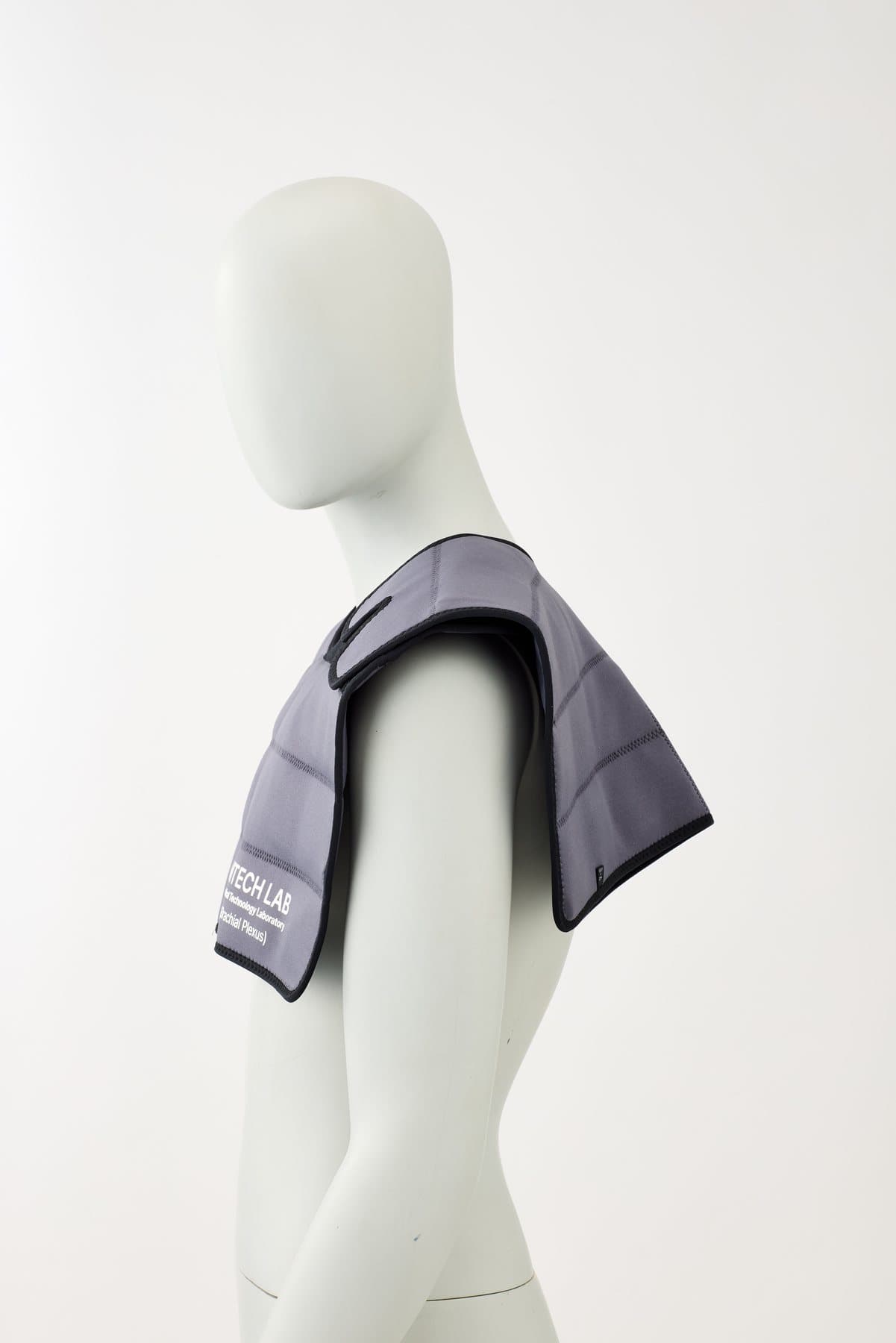

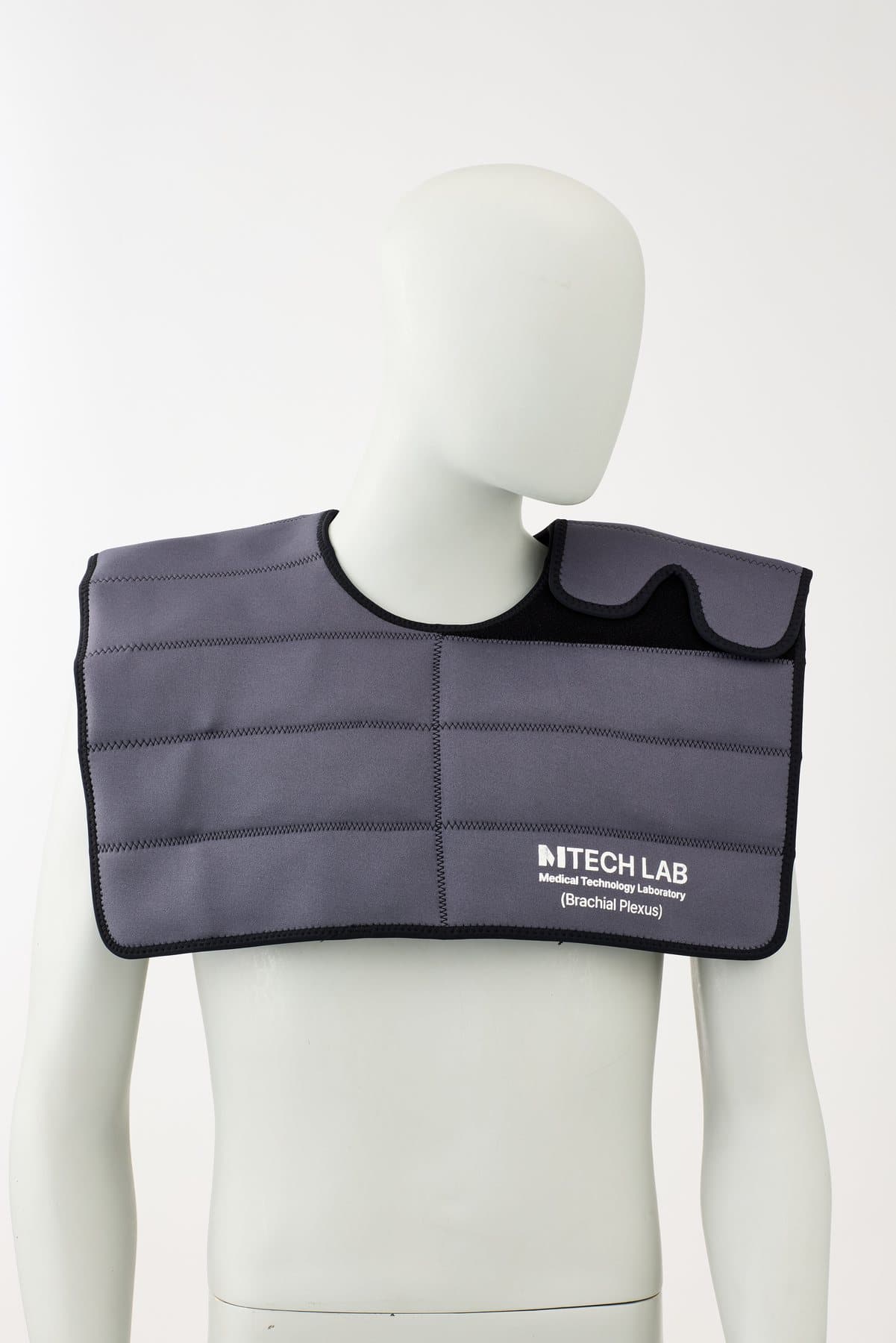

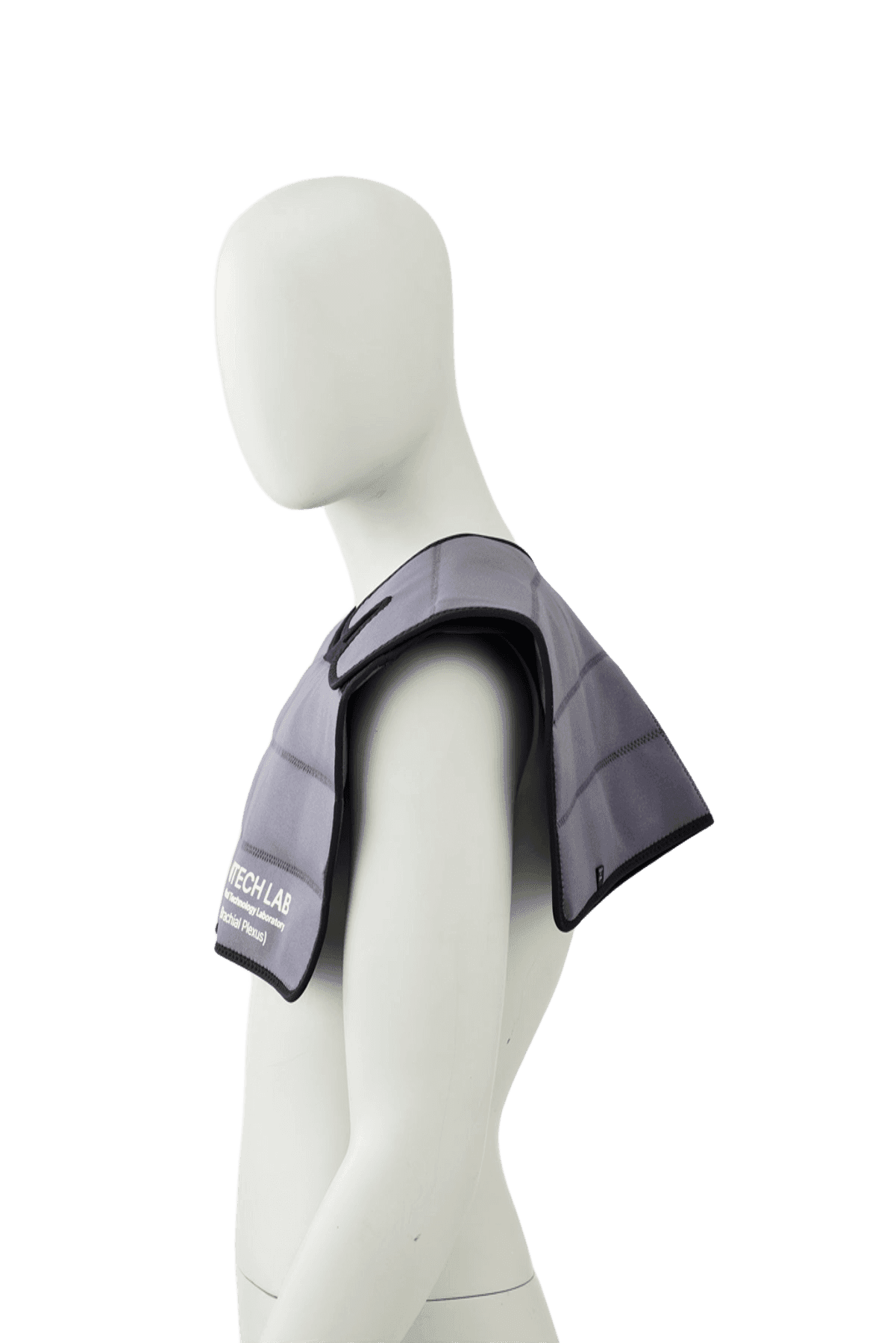

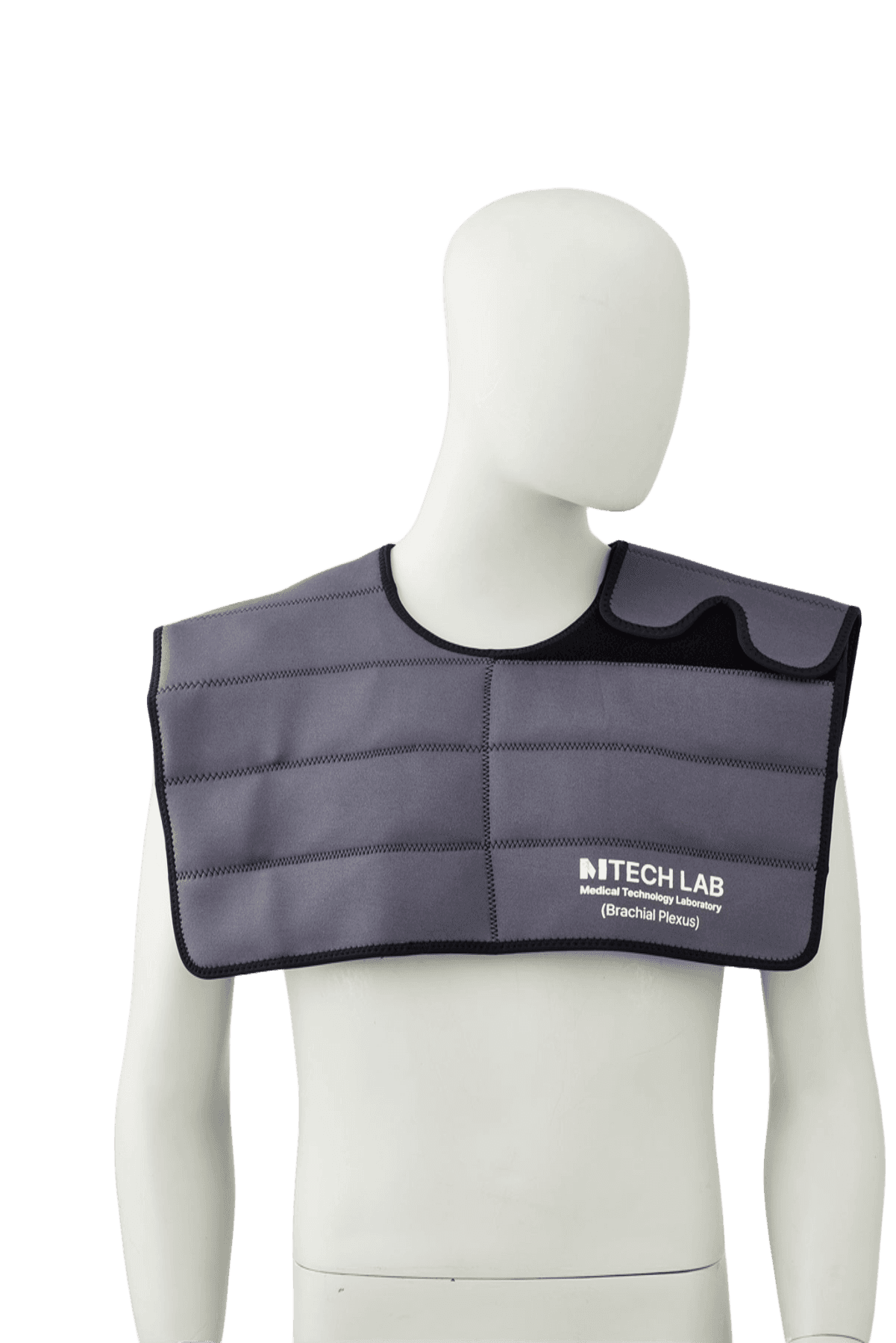

Seat the pad across the shoulder girdle and upper thoracic region where the plexus passes through the imaging field.

01

Position

Place the pad directly on the target anatomy, conforming it to the body surface.

02

Insert into coil

Slide inside the standard flex or spine coil as usual. No hardware modification needed.

03

Scan

Run your existing protocol without any parameter changes. Improvement is immediate and passive.

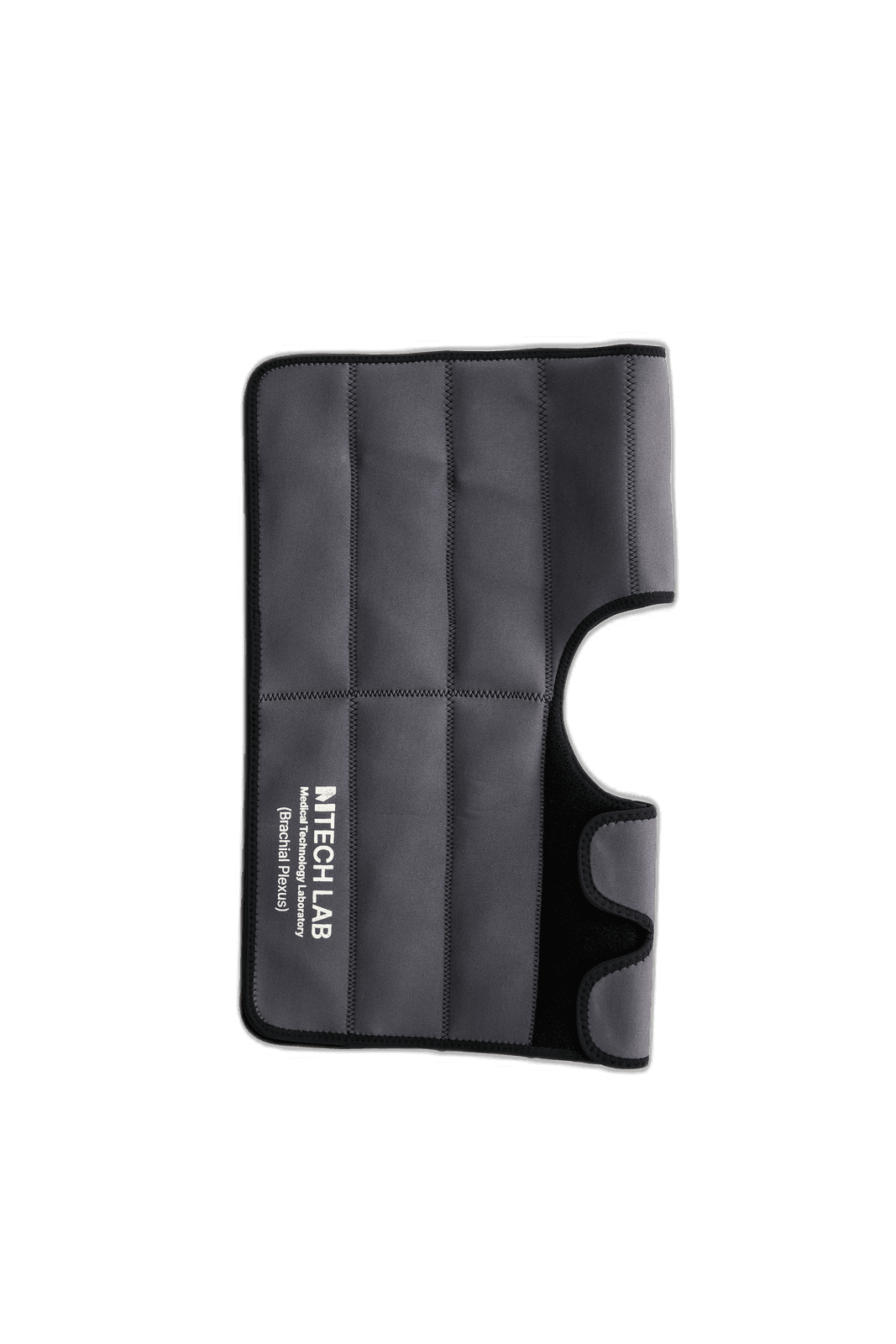

Brachial Plexus MRI Dielectric Pad rotating motion view
03 / Specifications
Width
50CM
Height
40CM
Sizes
Small · Medium · Large
Outer fabric
NEOPRENE POLYESTER 100%
Inner fabric
High dielectric constant material

Field strength

1.5T3T

Scanner compatibility

SiemensPhilipsGE

Clinical applications

Brachial plexus MRINerve root visualizationShoulder girdle protocols

Common sequences

T2WSTIR3D nerve imaging
04 / Product notes

Features

Built around fit, passive signal support, and repeatable clinical handling.

Provides clinically proven clear MRI images

Ergonomic design for better images

Excellent elasticity and durability

Harmless material to the human body

Frequently Asked Questions

No protocol changes are needed. Simply position the pad on the target anatomy and run your existing sequence without modification. The improvement in B1+ field homogeneity happens passively.

Yes. All MTechLab dielectric pads are MR Conditional and have been tested per ASTM F2503. They are safe for use in MRI systems at the field strengths listed on this page.

Yes. We regularly manufacture pads for non-standard anatomies, paediatric patients, and research applications. Contact us with the target circumference or dimensions and field strength — we'll specify the right configuration.

Wipe with a standard MRI-safe disinfectant (IPA wipe or equivalent). Do not autoclave or immerse in liquid. The outer fabric is resistant to common hospital disinfectants. Full reprocessing instructions are available on request.

3T systems show the largest absolute SNR gain because dielectric effects are strongest at higher frequencies. 1.5T also benefits significantly, particularly for deep anatomy. 7T research systems see the highest percentage improvement.

Use the following APA citation format when referencing this product in a publication or clinical report:

MTechLab. (2026). Brachial Plexus MRI Dielectric Pad [MRI Dielectric Pad]. MTechLab. https://mtechlab.com/solutions/mri-pads/brachial-plexus
